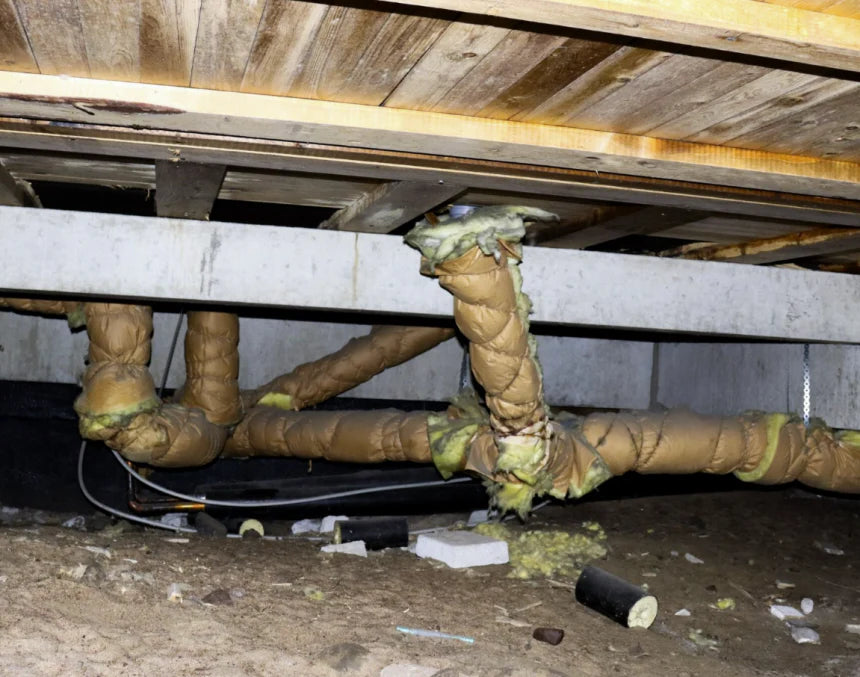

A crawl space is essentially an empty void between the ground and the floor joists of a house, typically between 50 cm and 100 cm high. It is usually ventilated through openings in the foundation wall, allowing outdoor air to pass through the space. The main advantage of this construction is that the house is not in direct contact with the ground, which reduces the risk of capillary moisture absorption from the ground – a common cause of rot damage in older pier or slab foundations.
Climate impact in Sweden
The problems with crawl spaces are largely linked to Sweden's climate. During spring, summer, and autumn, the outdoor air is often warm and humid. When this air is ventilated into the cold crawl space, it cools down. Since cold air cannot hold as much moisture as warm air, the excess moisture will condense on cold surfaces such as the ground, joists, and foundation walls. The relative humidity (RH) in the crawl space can then increase to over 75%, which is sufficient for mold and rot fungi to begin growing.
Weaknesses of the construction
Although a crawl space is inexpensive to construct and practical in certain building techniques, it is susceptible to:
- Inadequate drainage around the house.
- Insufficient ventilation or misplaced vents.
- Permeable ground surface, allowing ground moisture to evaporate into the foundation.
- Incorrect insulation – for example, when insulation is placed directly against the joists but not the ground.
Typical symptoms of moisture and mold problems in crawl spaces
Signs that your crawl space has been affected by moisture or mold may include:
- Musty or earthy smell in the house, especially near floor surfaces.
- Visible mold or discoloration on wooden beams.
- Condensation on insulation or pipes in the foundation.
- Increased presence of silverfish, earwigs, or other moisture-loving insects.
These symptoms should be taken seriously. Mold in the crawl space not only affects the house's structure but can also cause health problems such as allergies, asthma, and headaches.
Scientific studies and building codes
Several research reports from, for example, SP (now RISE – Research Institutes of Sweden) have shown that over 60% of crawl spaces in Sweden have elevated moisture levels and, in some cases, active mold problems. This has led to Boverket and other authorities recommending so-called dehumidified crawl spaces as a standard solution in new construction and renovations.
How to prevent moisture and mold in crawl spaces
Preventing moisture problems in crawl spaces is not just about avoiding visible damage or bad odors – it is also an investment in the house's lifespan and indoor climate. To protect your home from typical risks, a holistic approach is necessary, where ground conditions, construction, and climate interact. In this section, we review the most common and effective measures to keep your crawl space dry and mold-free.
Ground insulation and vapor barrier – The foundation of a dry crawl space
The first and most fundamental measure is to prevent moisture from the ground from rising into the crawl space. This is done by:
- Ground plastic (vapor barrier): A thick plastic sheet (usually 0.2–0.3 mm polyethylene) laid tightly over the entire ground surface in the crawl space. The plastic sheet should be pulled up about 10 cm on the foundation walls and taped at the seams. It prevents moisture from the soil from evaporating into the air.
- Cellular plastic insulation on top of the plastic: To further stabilize the temperature in the crawl space and reduce the risk of condensation, 50–100 mm cellular plastic boards (e.g., EPS or XPS) can be laid out. This lowers the relative humidity because the ground is kept warmer.
This combination is easy to implement in existing foundations, relatively inexpensive, and very effective.
Improved ventilation – but with nuances
Ventilation in the crawl space is a controversial issue. Traditionally, it has been recommended to increase ventilation with more or larger vents. However, in humid climates like Sweden's, this can have the opposite effect, especially during the summer.
Risks of over-ventilation:
- Warm, humid summer air condenses when it enters the cold foundation.
- Increased energy loss from heated spaces above.
Recommended solutions:
- Self-regulating vents: Vents that close at high humidity or low temperature.
- Close the vents during summer and winter (in some cases): Some schools advocate that vents should be closed during the most critical periods of the year and open during dry transitional periods (spring/autumn).
- Mechanical ventilation: Installation of fans that actively vent humid air. These should ideally be connected to hygrometers that regulate operation according to humidity.
Dehumidifiers – The most effective modern solution
For many homeowners, the installation of dehumidifiers in the crawl space has become the primary method to ensure a dry and mold-free space.
Types of dehumidifiers:
- Condensate dehumidifiers: Cool the air until moisture condenses and collects in a container or is drained away.
- Sorption/adsorption dehumidifiers: Particularly effective in cold environments. These absorb moisture via a rotating wheel and vent water vapor as warm, humid air through a hose.
Advantages:
- Maintains RH below critical levels (< 70%).
- Reduces the risk of mold development and bad odors.
- Long-term investment in the house's health.
Many modern dehumidifiers are equipped with remote monitoring via app, temperature and humidity sensors, and energy-efficient compressors.
Moisture safety in new construction
For those building a new house, there are great opportunities to create a crawl space that is resistant to moisture. Key elements are:
- Drainage and ground preparation: Gravel filling, drainage pipes, and sloping ground away from the foundation are fundamental.
- Climate screen: Insulation of foundation walls and the use of wind and vapor barriers.
- Insulated foundation: Use of so-called "warm crawl spaces" where the space is airtight and insulated, often in combination with low-temperature heating and/or dehumidifiers.
According to Boverket's building regulations (BBR), all foundation structures should be designed to be moisture-safe throughout the building's lifespan, which in practice means that crawl spaces in new construction should always have some form of active moisture protection.
Chemical mold treatment and remediation
In cases of incipient mold growth, remediation can be carried out using:
- Chemical agents such as boron- or hydrogen peroxide-based solutions.
- Dry ice blasting: A mechanical method where frozen carbon dioxide is blasted onto affected surfaces to remove mold.
- Ozone treatment: Eliminates odor but should be used with caution as ozone can negatively affect materials and electronics.
However, it is important to understand that remediation is not a solution in itself – it must be combined with moisture control measures to be long-term effective.
Identify and remedy moisture and mold problems in crawl spaces
When signs of moisture or mold begin to appear in a house, the crawl space is often to blame. Many discover the problems only when the smell spreads up through the floors, when floor joists show discoloration, or when children start exhibiting allergy symptoms. Acting quickly is crucial – not only to protect the house, but also for the family's health.
In this section, we will review how you, or with the help of professionals, can identify problems, as well as the steps required to remedy moisture damage and mold infestations in a long-term way.
Step 1: Visual inspection – what you can see with the naked eye
A visual inspection of the crawl space should be done at least once a year, preferably in late summer or autumn when moisture problems are most visible. You should check:
- Wooden beams and sills: Look for dark spots, visible mold (white, black, green), peeling paint, or soft wood.
- Ground plastic: Is the plastic intact? Are there puddles on top?
- Smell: An earthy, sweet, or stuffy smell is often a sign of microbial growth.
- Insects: Many silverfish or other moisture-loving species indicate a moisture problem.
- Vents: Are they clogged, open, or broken?
A simple flashlight and protective clothing are often enough to perform a basic inspection.
Step 2: Measurement of relative humidity (RH)
To determine with certainty if the crawl space has too high moisture levels, measuring instruments are required. Recommended measurement methods:
- Hygrometers: Simple digital moisture meters that measure RH in the air. Placed in the middle of the foundation, about 10–20 cm above the ground.
- Moisture loggers: Equipment that continuously logs moisture data over time – provides a more complete picture.
- Wood moisture meters: Measure the moisture content in the timber of the floor joists. Over 20% wood moisture is often critical.
According to guidelines, the RH in the crawl space should not exceed 75% for extended periods. Ideally, it should be between 60–70%.
Step 3: Assessment of the extent of the damage
Once you have determined that problems exist, you must assess the extent of the damage. There are three levels of damage:
- Superficial mold growth – can be remedied with remediation and improved ventilation.
- Deeper rot damage – often requires replacement of damaged timber and remediation.
- Structural defects – e.g., incorrect drainage, lack of ground plastic, or insulation that requires major measures.
Here, it may be wise to hire an inspector with expertise in crawl spaces and moisture.
Step 4: Remediation – removing mold and moisture damage
Once you have identified the extent, it's time to remediate. This is done in several steps:
1. Dry out the foundation
- Installation of a building fan or dehumidifier to quickly lower humidity levels.
- Open vents in dry weather.
2. Remove affected materials
- Saw off damaged timber.
- Discard damp insulation.
- Clean surfaces thoroughly.
3. Mold treatment
- Apply mold-killing agents (e.g., boron solution or hydrogen peroxide).
- Alternative: ozone treatment to neutralize odors (used when the house is empty).
4. Prevent recurrence
- Lay out ground plastic and insulate the ground.
- Install a dehumidifier with RH control.
- Check ventilation and, if necessary, adjust or replace the vents.
Step 5: Monitoring and maintenance
A remediated crawl space is not a "fix and forget" project. Long-term success is based on:
- Regular checks of moisture levels (at least spring and autumn).
- Annual service of dehumidifiers (filter change, function check).
- Cleaning of vents and checking for any water leaks.
There are also smart systems with moisture monitoring via app that send push notifications at excessively high humidity levels.
When should you seek professional help?
You should contact a specialist if:
- The damage is extensive or you suspect rot in load-bearing structures.
- You are unsure about the construction or material choices.
- Chemical remediation is needed on a larger scale.
- Dehumidifier systems need to be installed and integrated with the house's electrical system or drainage.
A professional company can also help with documenting damage, which may be necessary for insurance claims or sales.
What does it cost to protect a crawl space? – Economy, insurance, and long-term planning
Moisture and mold damage in crawl spaces can become both a financial and health nightmare. Therefore, it is wise not only to think about urgent measures but also about the investment's lifespan, warranties, and how insurance companies view crawl spaces. In this chapter, we review what different measures cost, what is covered by insurance, what guarantees you should demand – and how you can plan for long-term security.
Costs to remedy or protect a crawl space
The cost depends on the size of the foundation, accessibility, current condition, and the solutions required. Here is an approximate cost range for various measures in Sweden:
| Measure | Approximate cost (SEK incl. VAT) |
|---|---|
| Moisture measurement and inspection | 1,000 – 3,500 |
| Installation of ground plastic | 3,000 – 8,000 (material + labor) |
| Ground insulation (cellular plastic) | 5,000 – 15,000 |
| Dehumidifier installation | 15,000 – 35,000 |
| Mold remediation (chemical) | 5,000 – 20,000 |
| Replacement of damaged joists | 10,000 – 60,000 (depending on extent) |
| Complete crawl space package | 30,000 – 80,000+ |
NOTE: Prices vary depending on the contractor, geographical location, and the condition of the foundation. The ROT deduction can in many cases be used for parts of the work.
Are crawl space damages covered by insurance?
The short answer is: sometimes. Many Swedish home insurance policies do not cover damage caused by prolonged moisture exposure, as it is classified as a maintenance problem rather than a sudden damage.
When can insurance cover?
- In case of leakage from water pipes or drainage systems.
- If a construction defect is discovered and it can be proven that the builder is responsible.
- If advice from an inspector was not followed during a previous sale (may apply to hidden defects).
When is it not covered?
- Mold that has developed over time.
- Damage that could have been prevented with normal maintenance.
- Improperly performed remediation or installation for which you are responsible.
Tip: Check your home insurance carefully. Some companies offer supplementary insurance for moisture protection, mold damage, and remediation.
Warranties – What to demand from suppliers
When you hire a company for dehumidifier installation or moisture protection, you should receive written warranties. Some examples:
- Product warranty on dehumidifiers: Usually 2–5 years.
- Functionality warranty: Some companies guarantee that RH is kept below a certain level.
- Installation warranty: Ensures that the installation complies with industry standards.
- Option for service agreement: Regular checks and maintenance of the system.
ROT deduction for moisture protection and crawl space renovation
The ROT deduction is a financial benefit that can be used for work on detached houses. It provides:
- 30% tax reduction on labor costs (not material).
- Maximum SEK 50,000 per person per year.
Measures that qualify:
- Installation of ground plastic.
- Dehumidifiers.
- Insulation.
- Remediation (if done by a professional).
Important: The work must be carried out in a residence you own and live in.
Long-term planning – keep the foundation dry for decades
A moisture-safe crawl space should function trouble-free for at least 20–30 years, but this requires that you:
- Install systems that work together – dehumidifiers, plastic, insulation.
- Maintain the systems – service fans and check the condition of the plastic.
- Build smartly from the start – in new construction, choose a warm or encapsulated crawl space.
- Document the measures – important for future sales.
Documenting installations, measurement data, and warranties also makes it easier to convince insurance companies or buyers that the house is free from crawl space problems.
